Create and Deploy a D365FO Tier-1 Dev Box on Azure: Quick Guide

I know it can feel overwhelming to set up a development environment for Dynamics 365 Finance and Operations. This guide will help you create and deploy a Tier-1 Dev Box on Azure step by step.

If you’re a developer or IT admin, you’ll find everything explained in clear language so you can follow along easily. Let’s get started so you can have your virtual machine ready without any confusion.

Understanding Tier-1 Dev Boxes

Before you jump into creating your VM, it helps to know what a Tier-1 Dev Box is and why it matters. Understanding these basics will make the rest of the steps much easier to follow.

What is a D365FO Tier-1 Dev Box?

A Tier-1 Dev Box is a single virtual machine that runs Dynamics 365 Finance and Operations. It includes everything you need in one place—like the application, SQL Server, and all required services. Developers use this box to build custom features, test updates, or train their teams. Because it’s separate from production systems, you can work safely without risking live data.

Benefits of Using Azure for Deployment

Using Azure makes the process faster and easier. You don’t have to set up physical servers or worry about hardware. Azure lets you scale resources when needed and only pay for what you use. You also get built-in security and backup options, so your environment stays protected.

Prerequisites

Before you begin, make sure you have:

• An active Azure subscription.
• Permissions to create resources in Azure, like the Contributor or Owner role.
• Access to the Dynamics 365 Finance and Operations VM image in Azure Marketplace.
• A strong password or SSH key for logging in.

Having these ready will help you avoid delays during setup.

Steps to Create and Deploy the VM

Follow these steps one by one to build your environment.

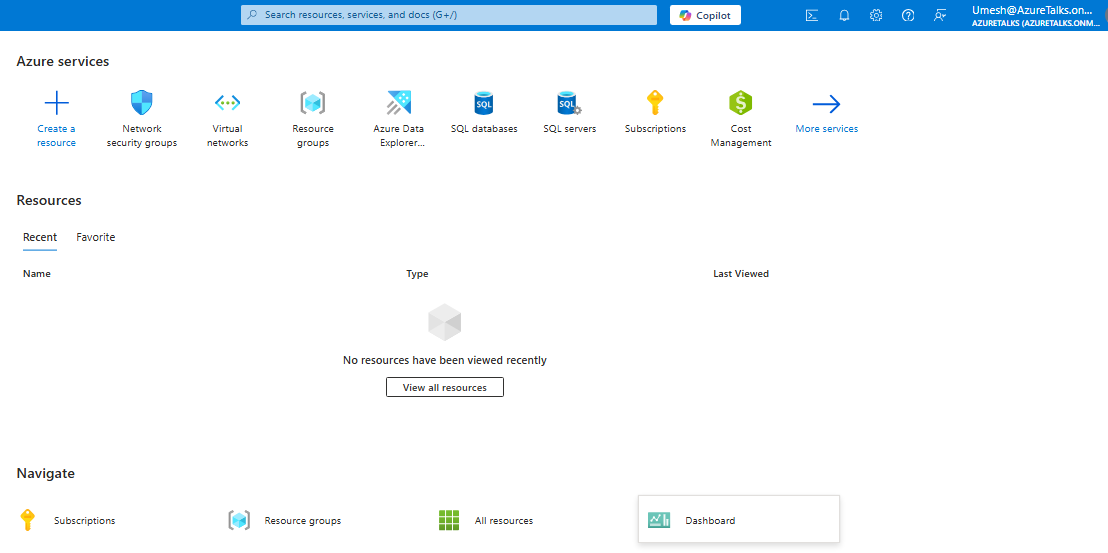

1) Sign in to Azure Portal

Open portal.azure.com in your web browser. Log in with your Azure account details.

2) Start Creating a Virtual Machine

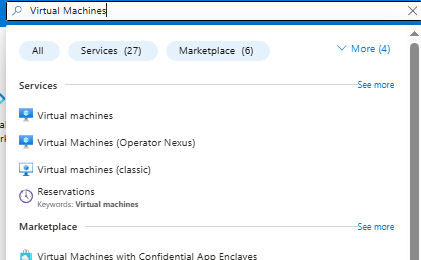

Using the search box, open Virtual Machines.

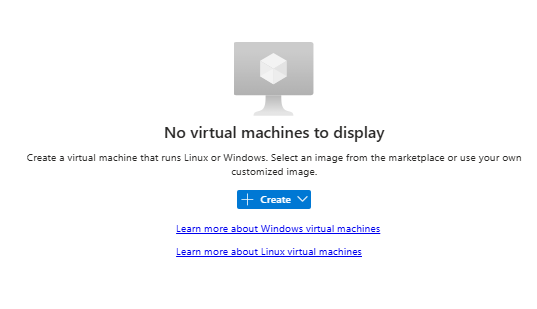

At the top of the page, select Create.

Then choose Azure Virtual Machine to start the setup.

3) Select the D365FO Image

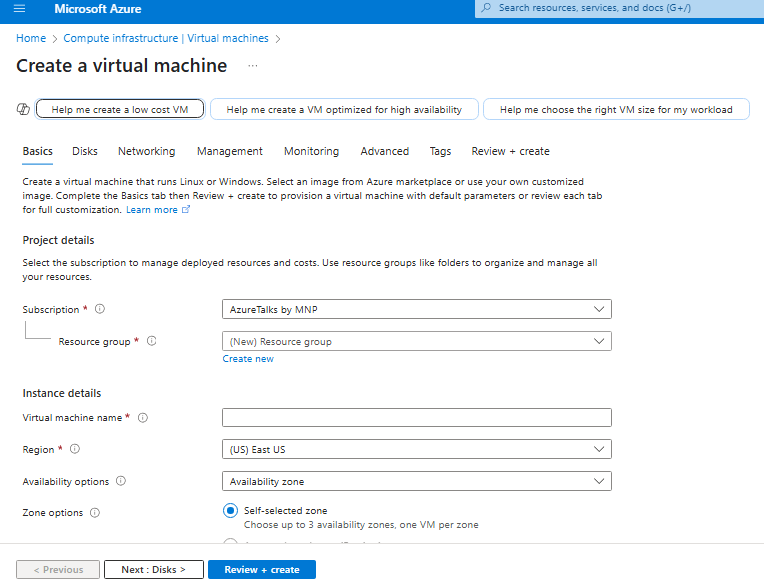

In the Basics tab, find the Image dropdown.

Click Browse all public and private images.

Search for Dynamics 365 Finance and Operations.

Pick the Tier-1 Dev Box image that matches the version you need.

4) Configure Basic Settings

Fill in these details:

• Virtual machine name: For example, D365FO-DevBox.
• Region: Choose the region closest to your users.
• Availability options: Leave default if you don’t need extra redundancy.
• Size: Click Change size and pick a Standard D-series VM like D4s_v3.
• Authentication type: Use a password or SSH key.
• Username and password: Set up credentials for later login.

5) Configure Disks



On the Disks tab, choose Standard SSD. This gives you good performance without high cost.

6) Set Up Networking

In the Networking tab:

• Virtual Network: Use an existing one or create a new one.
• Subnet: Pick the right subnet.
• Public IP: Enable if you want to connect via Remote Desktop.
• Network Security Group: Make sure RDP (port 3389) is allowed.

7) Configure Management and Monitoring

Here you can:

• Enable auto-shutdown to save money when the VM isn’t in use.
• Turn on boot diagnostics to capture logs if something fails.
• Enable monitoring to track usage and performance.

8) Review and Create

Click Review + Create. Azure will validate your settings.

If everything looks good, click Create to start deployment. It usually takes a few minutes.

Connect to the Virtual Machine

After Azure finishes building your VM, you can connect to it:

• In Azure Portal, go to Virtual Machines.
• Find your VM and click its name.

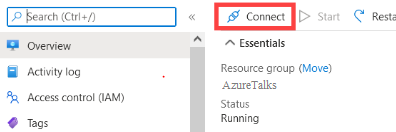

• Click Connect, then choose RDP.

• Download the RDP file.
• Open it on your computer.
• Use the username and password you created to log in.

This gives you full access to the Windows desktop.

Complete the Dynamics 365 Setup

Inside the VM:

• Check that all Dynamics 365 services are installed and running.
• Do any first-time setup, like configuring service accounts or testing system health.
• Apply updates or patches to keep the system secure.
• Open the application to make sure it works properly.

Completing these steps gets your Dev Box ready for work.

What To Do After Deployment

Before you start developing, take a few extra steps:

• Update Windows and Dynamics 365 to the newest versions.
• Change default passwords to keep your VM secure.
• Set up backups or snapshots so you can restore the VM if needed.
• Review firewall settings to control who can connect.

These actions help protect your environment and keep it stable.

Sum Up

I hope this guide helped you see that setting up a Dynamics 365 Finance and Operations Tier-1 Dev Box in Azure doesn’t have to be hard. By following these clear steps, you can create a safe, flexible environment for testing and development. Remember to keep your VM updated, secure your connections, and back up your data regularly. If you ever need more details, Microsoft’s official documentation and Azure support are great resources. Now you’re ready to start building with confidence.
